Sky-Guard EO Tracking System
Visible-light and thermal imaging for target confirmation
Selected product
Sky-Guard EO Tracking System
Visible-light and thermal imaging for target confirmation
Overview
An electro-optical tracking subsystem combining visible-light imaging, infrared thermal imaging, multi-spectral fusion, and servo tracking. It delivers day/night target detection, tracking, identification, and intelligent warning for low, slow, and small aerial targets.
Operational Highlights
- Visible-light + thermal imaging channels with multi-spectral data fusion.
- 48× optical continuous zoom with automatic focus and optical defogging.
- Horizontal 360° continuous rotation and -90° to +90° pitch coverage.
Key Capabilities
- Edge algorithms for optional classification of 80+ target types
- Heat-source detection, tracking, pre-warning, and alarm linkage
- Radar guidance, spectrum-positioning guidance, GPS, and environmental-data access
- Azimuth, field-of-view, temperature, humidity, and angle feedback
- IP66 protection, low-temperature operation, and optional vibration damping
Application Scenarios
- EO confirmation after radar or RF detection
- Low-altitude security defense and military reconnaissance
- Day/night monitoring of LSS targets and larger aircraft
Key Specifications
| Visible Camera | 1920 × 1080 @ 25/30 fps |
| Optical Lens | F6.5–312 mm, 48× continuous zoom |
| Thermal Imaging | Uncooled 640 × 512; 75 mm fixed lens |
| Day UAV Detection | ≥ 2.5 km detection; ≥ 2 km tracking |
| Night UAV Detection | ≥ 1.2 km detection; ≥ 1 km tracking |
| Gimbal | 360° pan; -90° to +90° tilt; ±0.01° preset accuracy |
| Power / Weight | ≤ 30 W steady-state; ≤ 8 kg |
| Protection | IP66 |

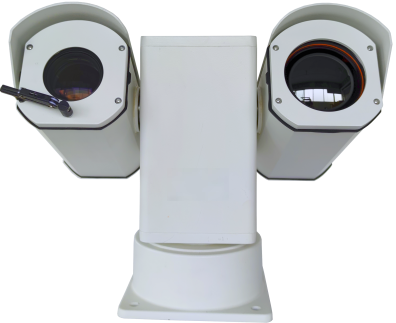

Product Visual

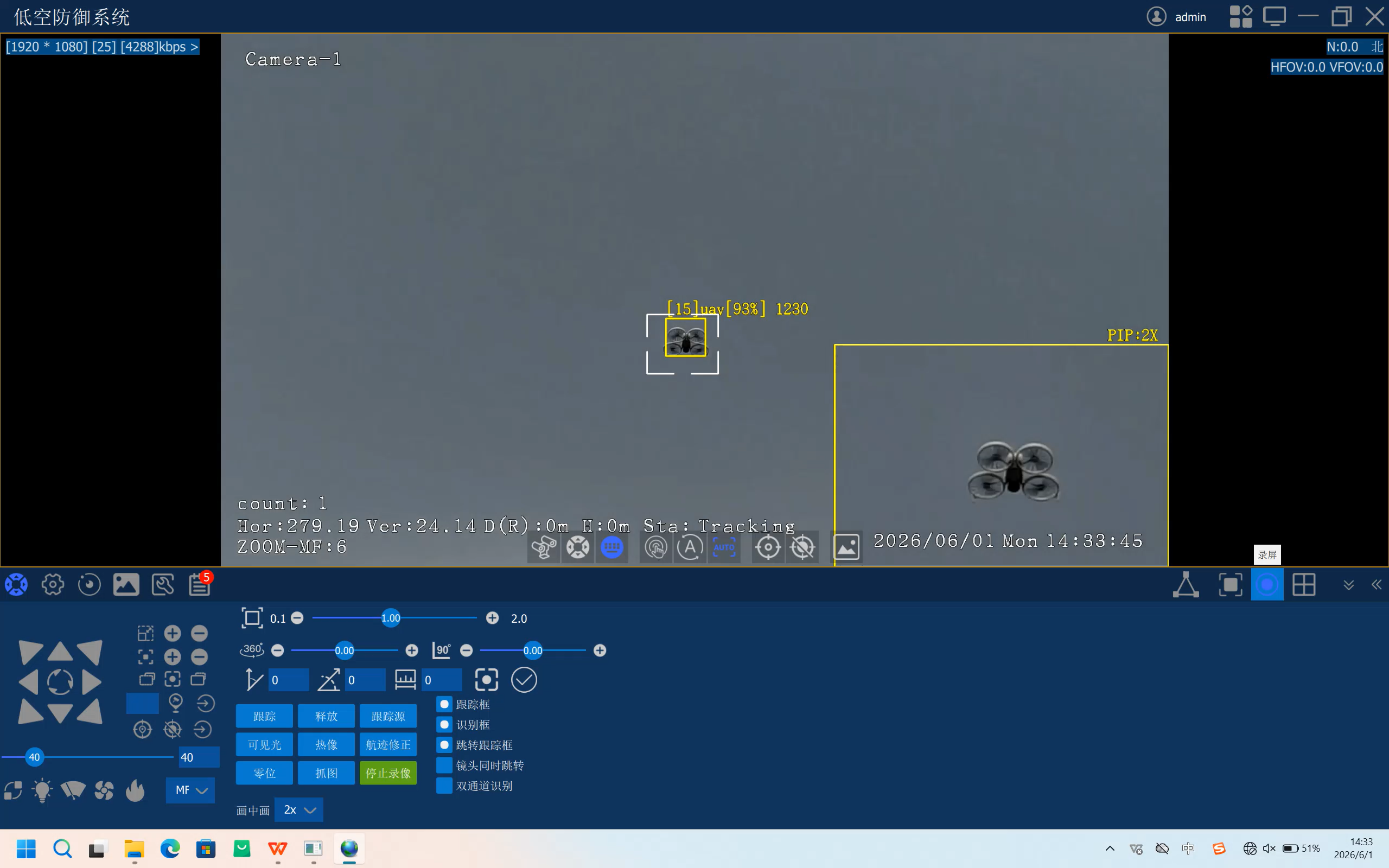

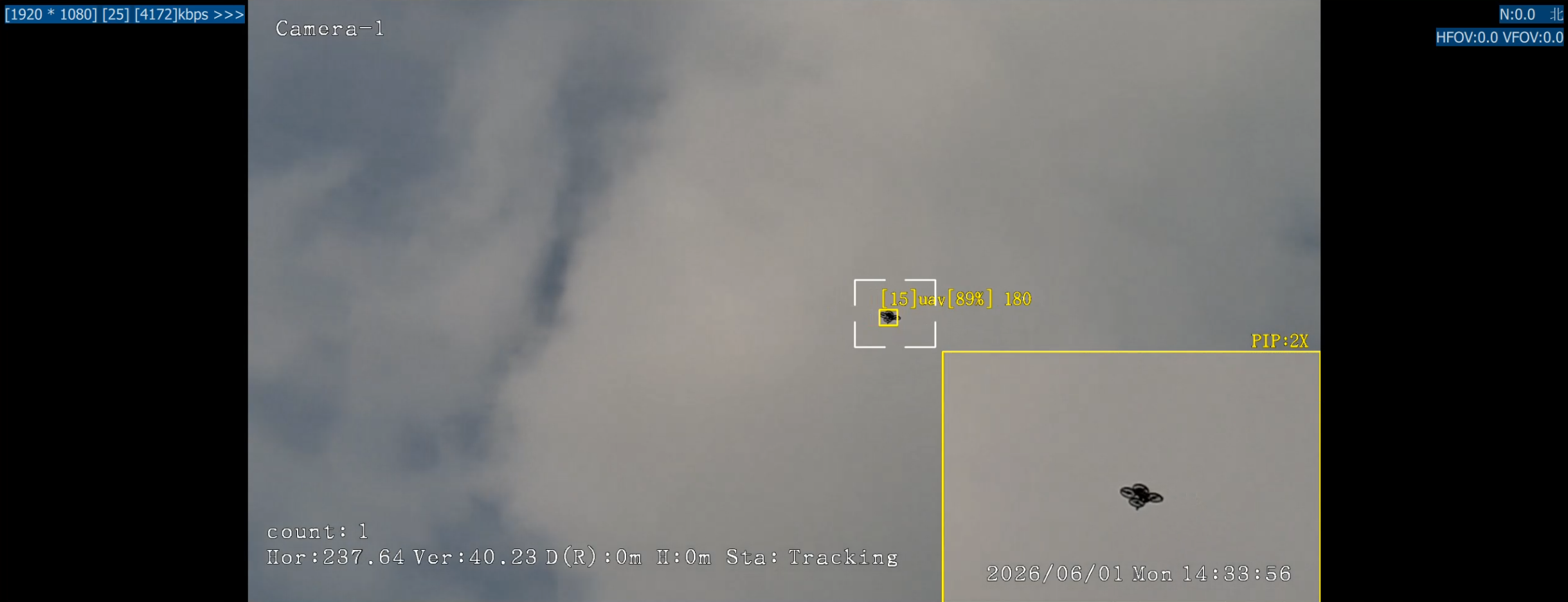

Field Photos & Interfaces
Download Datasheet
A4 product datasheet in PDF format with detailed features and specifications.
