Sky-Guard Radar Detection System
360° low-altitude UAV detection and precision EO cueing
Selected product
Sky-Guard Radar Detection System
360° low-altitude UAV detection and precision EO cueing
Overview
A Ku-band radar subsystem composed of the radar unit, motorised turntable, and operator terminal software. It detects and tracks low-altitude UAV targets, outputs real-time 3D target parameters, and provides precise cueing for electro-optical, jamming, and spoofing subsystems.
Operational Highlights
- 360° mechanical azimuth scan with electronic elevation coverage from 0° to 30°.
- Outputs range, azimuth, altitude, speed, longitude, and latitude in real time.
- Supports tripod deployment, vehicle-roof mobile monitoring, or fixed rooftop stations.
Key Capabilities
- Fully coherent pulse-Doppler processing
- Sum-and-difference monopulse angle measurement
- MTD coherent integration and CFAR detection
- Track initiation, target association, and terminal reporting
- Guidance output for EO identification and counter-UAS effectors
Application Scenarios
- Perimeter surveillance for critical infrastructure
- Mobile low-altitude monitoring stations
- Integrated detect-track-identify-response systems
Key Specifications
| Frequency Band | Ku, 16 GHz ± 100 MHz |
| Azimuth / Elevation | 360° mechanical / ≥ 30° electronic |
| Max Detection Range | ≥ 3 km (DJI Phantom 3/4, Pd = 85%) |
| Minimum Detection Range | ≤ 250 m |
| Minimum Detectable Speed | ≤ 1.5 m/s |
| 3D Accuracy | Range ≤ 10 m; azimuth/elevation ≤ 0.5° RMS |
| Refresh Rate | 3 s per 360° scan |
| Weight / Power | ≤ 30 kg; ≤ 150 W including turntable |
Product Visual

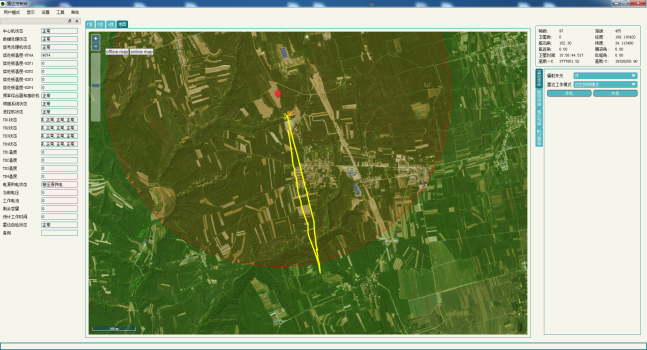

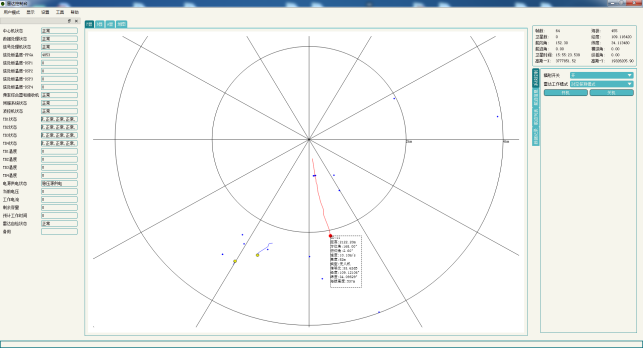

Field Photos & Interfaces
Download Datasheet
A4 product datasheet in PDF format with detailed features and specifications.
